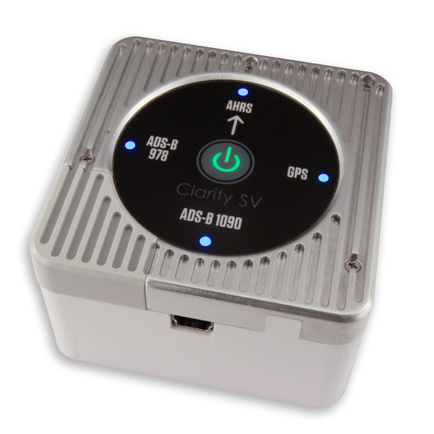

Sagetech Clarity SV ADS-B + AHRS Receiver
Clarity SV

For all things, there is a gold-standard.
For ADS-B receivers, gold is actually silver.

FAA-Provided ADS-B Weather and Traffic in the Cockpit
Introduced more than a decade ago by the FAA, ADS-B (Automatic Dependent Surveillance-Broadcast) provides weather and traffic information to all aircraft equipped with an ADS-B receiver, such as the Clarity SV, subscription-free. The portable Clarity SV ADS-B receiver provides ADS-B weather and traffic to FlyQ EFB (sold separately) for display on an iPad.

Read the FlyQ EFB ADS-B Primer for more information

The Clarity SV provides the following ADS-B In services: Flight Information Service-Broadcast (FIS-B). FIS-B provides regional and continental NEXRAD radar imagery from the National Weather Service, as well as NOTAMs, METARs, TAFs, PIREPs, winds aloft and other valuable in-flight weather services. FIS-B also includes information on temporary flight restrictions (TFR) and special use airspaces (SUA). *

The Clarity SV also receives traffic information on both the 978 (ground to air) and 1090 (air to air) frequencies for maximum traffic coverage. FlyQ EFB displays this traffic using intuitive colors that signify threat levels, future-position lines so you can understand where the targets will be in 2 minutes, and an optional filtering system to remove targets that pose no threat so you can focus on ones that might.

Attitude Heading Reference System (AHRS)
Clarity SV facilitates your 3D Synthetic Vision app by providing essential pitch-roll-heading data. The Attitude Heading Reference System (AHRS) comprising of a 9-dof (degree of freedom) sensor suite, and a sophisticated Extended Kalman Filter signal processing module. These work together to continually sense and calculate your aircraft pitch, roll, and yaw attitude which are then transmitted to your iPad/Tablet Synthetic Vision app to present a virtual reality representation of your surrounding environment. Clarity SV is not a certified product and should never be used as a primary flight instrument.

Highly Accurate GPS
The Clarity SV includes a WAAS GPS receiver with fast location acquisition (under 30 seconds), with position updates up to 10 times per second. The GPS location information is wirelessly transmitted via Wi-Fi to the iPad.

Sagetech360 Internal Phased Array Antenna
Only Clarity employs a sophisticated multi-element internal antenna, shown in RF Test Labs to provide excellent omnidirectional sensitivity. That means you'll safely receive data even from ADS-B ground stations behind you.

Data Burst Technology
Clarity stores ADS-B messages while your iPad sleeps. When you run your descent checklist, turn on your iPad and simply touch Clarity's power button to activate Clarity's Data-Burst function, which transmits stored weather and FIS-B data. You'll have the information you need, when you need it.

Wireless Wi-Fi Connectivity
The Clarity SV wirelessly sends data to up to 5 iPad devices simultaneously.

Built-In Rechargeable Battery
The Clarity SV has a built-in rechargeable battery that lasts for up to 8 hours of use. Includes wall charger and USB cable.

Useful Non-Slip Pad Included
The included non-slip pad holds the receiver securely in place on an aircraft's glareshield, car's dashboard, or boat's console.

Set Up is a Breeze
It takes less than a minute to pair your iPad with the Clarity SV, and the receiver will remember your iPad the next time you want to use it.

Buy Now.  Now with free shipping!  Just $1399.99.
